Medical Gas Area Valve Box Installation Guide

Understanding the Medical Gas Area Valve Box and NFPA 99 Compliance

What is a medical gas area valve box and its role in healthcare facilities

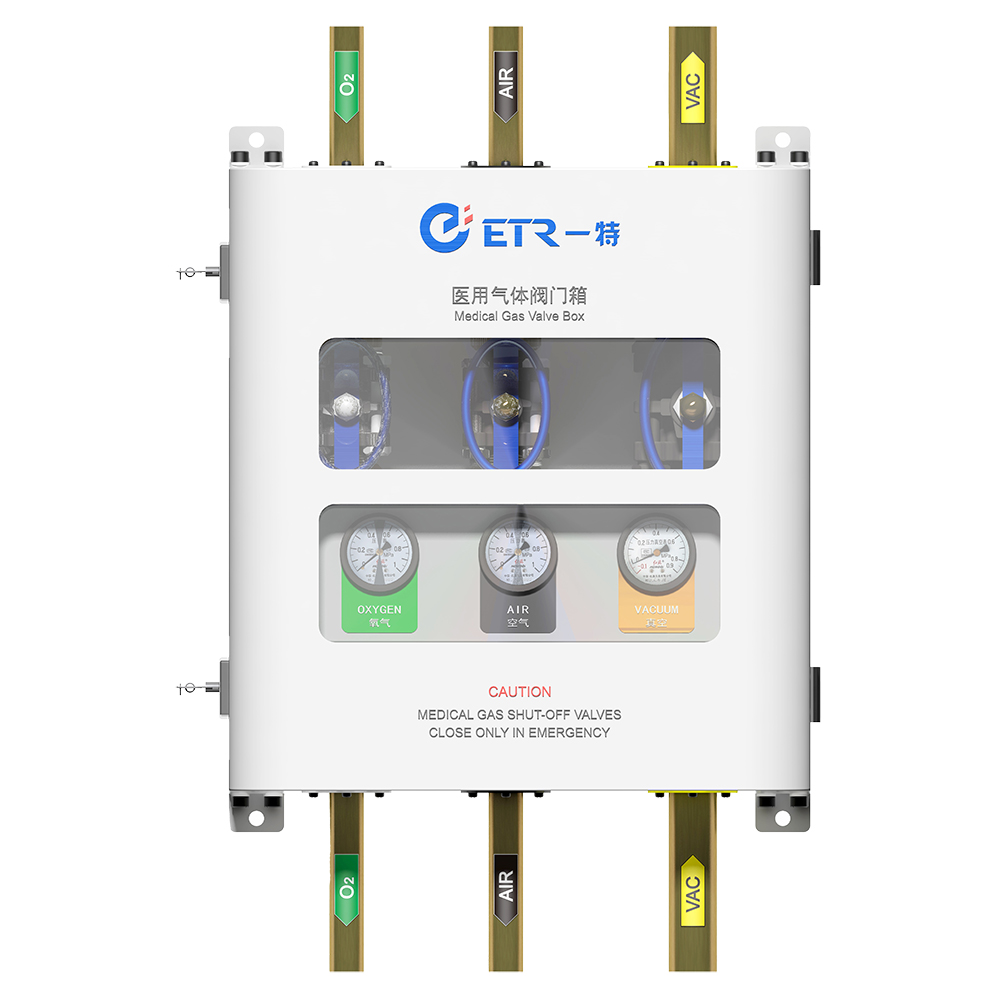

The medical gas area valve box, commonly known as an MGAVB, serves as a durable stainless steel container holding those important shut off valves for gases such as oxygen and nitrous oxide used throughout hospitals and clinics. These boxes allow staff to quickly cut off gas supply lines when needed during emergency situations or regular maintenance work. This helps keep everything safe without affecting gas availability in other parts of the building. Most American healthcare centers have adopted these systems, with around 89 percent installing them specifically in high risk locations including operating rooms and intensive care units where continuous access to medical gases remains absolutely essential for patient care and compliance with safety standards.

NFPA 99 compliance for medical gas systems: Core requirements for valve installation

NFPA 99 establishes key safety standards for medical gas systems, including:

• Valves must withstand 1.5 times normal operating pressure (minimum 50 psig for 10 minutes)
• Emergency shutoff controls located within 6 feet of zone valves
• Annual pressure testing using calibrated equipment

Facilities adhering to these requirements saw a 37% reduction in gas-related incidents, according to a 2023 Joint Commission report.

Key differences between NFPA 99 and ISO 7396-1 standards in valve placement

While both standards prioritize patient safety, they differ in specific requirements:

Requirement	NFPA 99	ISO 7396-1
Valve accessibility	48"-60" from floor	39"-59" from floor
Testing frequency	Annual	Biennial
Label contrast	70% luminance ratio	60% luminance ratio

NFPA 99’s annual testing aligns with 92% of U.S. hospital accreditation requirements, whereas ISO 7396-1 is more commonly adopted in Europe.

Optimal Placement and Accessibility of Medical Gas Area Valve Boxes

Proper location of zone valves in medical gas systems: Distance and accessibility guidelines

The installation height for medical gas area valve boxes generally ranges between 3 to 5 feet above finished flooring. This positioning helps maintain good access while keeping them safe from accidental bumps or damage according to NFPA 99 standards from 2021. When it comes to critical care spaces, those zone valves need to stay pretty close by their service area, no more than 10 feet away. For general purpose zones though, there's some flexibility with piping runs stretching up to 150 feet between valves. Clearance requirements are also important to remember. Mechanical rooms need at least 18 inches of free space around these boxes, while patient care areas require a minimum of 12 inches all around so staff can get to them quickly during emergencies.

Zone valve accessibility and visibility requirements in clinical environments

Per NFPA 99, 95% of zone valves must be operable without tools, with lockable covers permitted only in staff-controlled areas. In high-traffic zones like ICUs, visibility requirements include:

Visibility Feature	Requirement
Signage letter height	≈1" (25.4 mm)
Contrast ratio	70% light/dark difference
Emergency identification	Luminescent backgrounds

Valve handles must face corridors and remain unobstructed within 36" horizontally.

Avoiding obstructions: Clearance and access requirements for medical gas area valve box

The access routes leading to valve boxes need to measure no less than 30 inches across in regular clinical spaces, but this increases to around 42 inches specifically for rehabilitation centers where wheelchair access becomes crucial. Putting these boxes too close to anything else isn't allowed either. For instance, they cannot sit within 24 inches of electrical panels or get placed closer than 18 inches from sprinkler heads throughout the facility. Flammable stuff like paper products or cleaning supplies should stay clear at minimum distance of 3 feet from all sides. And remember those annual checkups? They're mandatory for making sure everything still meets the standards outlined in the updated 2021 edition of NFPA 99 safety guidelines.

Labeling, Color-Coding, and Emergency Identification Standards

Valve placement and labeling in medical gas systems: Ensuring instant recognition

The labels attached to those medical gas valve boxes need to show what kind of gas is inside, the pressure it works at, and which way the flow goes. These labels have got to be within about three feet (that's roughly 0.9 meters) from every shut off point. The rules say they need to be permanently engraved instead of just stuck on with adhesive stickers because those tend to fade or get damaged over time. When it comes to identification plaques, mounting them around 60 inches up from the floor makes sense so healthcare workers can actually see them without bending down or looking past equipment or patient beds. Recent research looked at 47 different hospitals last year and discovered something interesting: when hospitals used consistent labeling throughout their facilities, there was a drop in gas system mistakes by almost two thirds. That's pretty impressive considering how critical these systems are in hospital settings.

Color-coding and signage per NFPA 99 zone valve requirements and interpretation

Medical gas valves must follow strict color-coding:

• Oxygen: Green background with white text
• Nitrous Oxide: Blue background with yellow text
• Medical Air: Black-and-white checkerboard pattern

NFPA 99-2021 requires a minimum 1" text height and Braille for ADA compliance. Label contrast must exceed 70% under emergency lighting. Facilities following ISO 7396-1 should supplement color codes with text, as the international standard relies more heavily on color recognition.

Labeling and accessibility of zone valve boxes: Best practices for emergency response

In critical care settings, valve boxes need proper illumination with at least 90 minutes of battery backup according to NFPA 99 standards for emergency power. There should be a minimum of 36 inches of unobstructed space in front of these boxes, and the shut off valves must work even when operators are wearing gloves. The latest CMS inspection reports show that nearly a quarter of facilities get cited for labeling problems, with missing flow direction arrows and inaccessible panels being the most frequent issues. Staff training isn't just about knowing where boxes are located either. Facilities that conduct regular emergency drills find their teams struggle to find valve boxes within five seconds, which can mean life or death situations when every second counts during an actual crisis.

Integration of Area Alarm Panels with ZVB/AAP Combo Units

ZVB/AAP Combo Units for Small Facilities: Design and Installation Advantages

When zone valve boxes get paired up with area alarm panels, the result is a compact setup that works really well in clinics and outpatient centers. The combined system cuts down on those pesky wall holes by around 35 to 40 percent compared to installing everything separately, all without sacrificing compliance with NFPA 99 standards. There are several advantages worth noting here. Maintenance becomes much easier when everything's in one place rather than scattered throughout the building. Monitoring alarms from a single point makes sense too, especially during emergencies when time matters most. And let's face it, these streamlined shutdown procedures make life simpler for facility managers who might not have a huge team of tech experts on hand to deal with complicated systems.

Area Alarm Panel (AAP) Installation and Location: Coordination with Valve Boxes

For proper operation, AAP installations need to stay within 60 inches of the medical gas area valve boxes they're connected to. When mounting control panels, aim for heights between 48 and 54 inches from the floor surface so everyone can access them whether sitting down or standing up. The LED indicators for critical alerts ought to point toward where most staff members walk through regularly. As for those warning sounds, they need to be at least 15 decibels louder than whatever background noise exists in the space according to the latest ASHRAE hospital acoustics standards from 2022. Getting these details right makes all the difference when it comes to ensuring clear communication during emergencies.

Sensor Placement for Area Alarms: Ensuring Accurate Pressure Monitoring

Pressure sensors in ZVB/AAP combos require strategic placement to ensure accuracy:

• Intake Positioning: 12"–18" downstream from primary shutoff valves
• Turbulence Avoidance: Maintain 10x pipe diameter distance from elbows or tees
• Calibration Access: Front-facing ports for quarterly testing

This configuration allows detection of 0.5 PSI deviations within 8 seconds, meeting ISO 7396-1 response thresholds for oxygen and vacuum systems.

Design and Installation Coordination Between Engineers and Architects

Coordination Between Engineers and Architects for Valve Box Installation

Getting medical gas area valve boxes installed right really hinges on getting engineering and architecture teams talking from day one. The engineers need to lay out exact space needs and clearances according to NFPA 99 standards, and architects have to work those specs into their room designs without messing up how doctors and nurses actually move around during procedures. Some research came out last year showing something pretty interesting too. Projects where different departments worked together upfront saw almost half (about 47%) fewer problems with valve installations later on compared to when everyone just did their own thing separately. Makes sense when you think about it the whole hospital operates better when all the pieces fit together properly from the start.

Medical Gas Pipeline System Design and Layout: Integrating Valve Boxes Early in Planning

Incorporating valve boxes during schematic design prevents costly retrofits. Forward-thinking healthcare designers emphasize integrating medical gas infrastructure early in architectural programming, ensuring adequate wall space and compliance with infection control standards. Key considerations include:

• Aligning shutoff valves with fire-rated barriers per NFPA 99
• Preserving 1.2m clearance around valve boxes for maintenance
• Coordinating with structural engineers to avoid beam conflicts

Projects using this integrated approach achieve 32% faster inspection approvals, based on 2024 healthcare construction data.

Frequently Asked Questions (FAQ)

What is the purpose of a medical gas area valve box?

The medical gas area valve box serves as a container holding shut off valves for medical gases like oxygen and nitrous oxide, allowing staff to quickly halt the supply during emergencies or maintenance without disrupting gas access elsewhere.

What are the core NFPA 99 requirements for medical gas valve systems?

Key NFPA 99 requirements include valves that can withstand 1.5 times normal operating pressure, emergency shutoff controls within 6 feet of zone valves, and annual pressure testing.

How do NFPA 99 and ISO 7396-1 standards differ?

NFPA 99 focuses on issues like valve accessibility and annual testing, while ISO 7396-1 often applies in Europe, focusing more on color recognition and biennial testing.

Why is integration between engineers and architects crucial for valve box installation?

Collaborative planning helps ensure proper spacing and needs are met according to NFPA 99 standards from the start, reducing installation problems and streamlining facility operations.
