How Does Medical Gas Manifold Work?

Understanding the Function and Operation of a Medical Gas Manifold

The Critical Role of Continuous Gas Supply in Healthcare

Medical gas manifolds keep the flow going for oxygen and other essential gases to vital equipment like ventilators, anesthesia devices, and those special incubators for newborns. The World Health Organization reported back in 2023 that nearly nine out of ten problems in critical care situations actually come down to interruptions in gas supply, which really highlights just how important these systems are for saving lives. These days, modern manifold designs manage to stay within about 2% pressure fluctuation range even when emergency rooms hit their busiest moments. A study published last year in the Journal of Clinical Engineering confirms this performance level across multiple hospital settings.

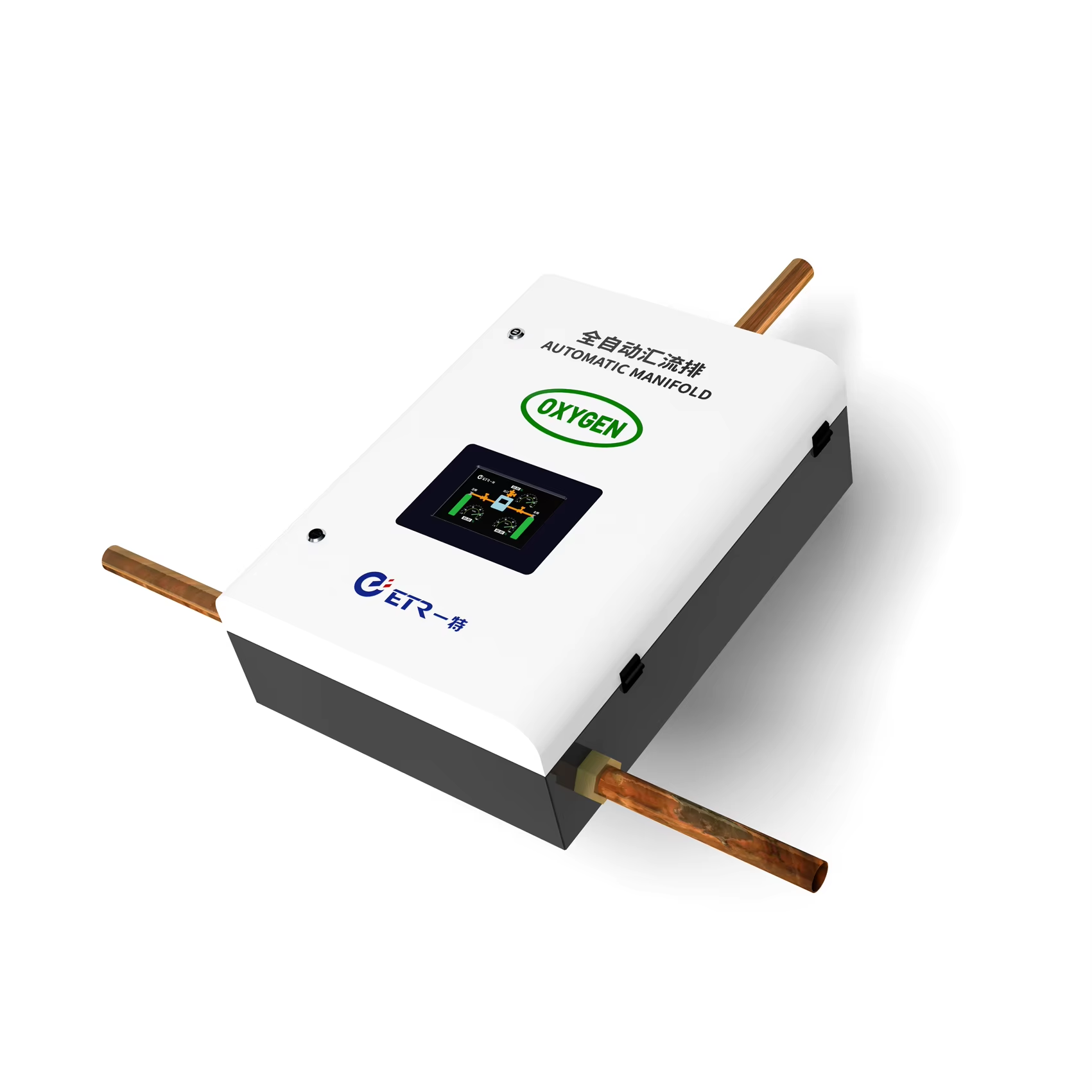

How the Medical Gas Manifold Manages Gas Flow

Using precision pressure regulators and automated valve arrays, these systems balance gas distribution across 20–50 hospital zones simultaneously. The manifold’s internal control logic adjusts flow rates every 0.5 seconds based on real-time consumption, ensuring pressure never drops below the critical 345 kPa threshold required for ventilator operation—per NFPA 99-2022 standards.

Case Study: Implementation in a 500-Bed Tertiary Hospital

Memorial Health System reduced gas-related incident reports by 73% after installing a smart manifold with dual redundancy in 2022. Their configuration includes:

• Primary Supply: 48 oxygen cylinders (20,000 L total capacity)
• Failover Mechanism: Automatic switch to liquid oxygen tanks within 8 seconds
• Post-Implementation Results: 99.998% gas availability during the 2023 flu season surges

Design Strategies for Maximum Reliability

Top-performing manifolds incorporate:

Component	Reliability Feature	Performance Metric
Stainless Steel Manifold	Corrosion resistance for 15+ year lifespan	0.001% material failure rate
Dual Pressure Sensors	Continuous cross-verification	99.999% detection accuracy
Sealed Valve Actuators	IP67 protection against particulate ingress	5x maintenance interval

Emerging Trend: Integration of Digital Monitoring Systems

Next-generation manifolds use predictive algorithms to analyze gas usage and forecast supply needs up to 72 hours in advance. A 2024 pilot at Johns Hopkins showed this technology reduced emergency cylinder changes by 61% while maintaining pressure stability at 50.1 psi (±0.2 psi) in ICU environments.

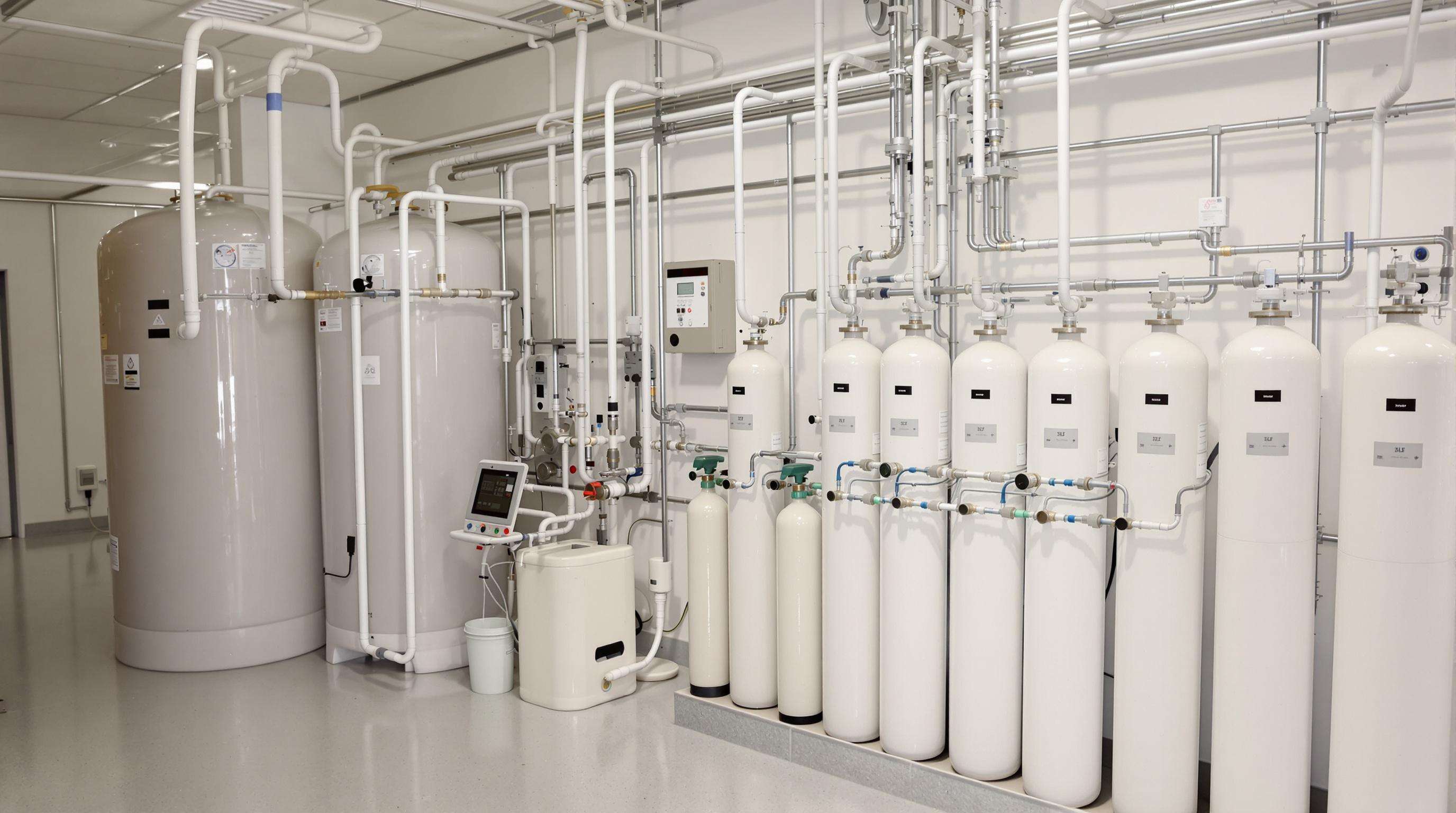

Today's medical gas manifold systems keep essential gases flowing without interruption thanks to automated switching mechanisms. These setups constantly watch the main gas supply lines and kick in backup sources whenever pressure falls below what's considered safe. The importance of this cannot be overstated since any break in service during surgeries or when supporting critically ill patients could have serious consequences. According to NFPA 99 standards, oxygen systems need to switch over within 15 seconds maximum. Most facilities design their systems to meet these requirements well beyond the minimum, knowing how vital continuous gas delivery truly is in healthcare settings.

Preventing Supply Interruption During Cylinder Depletion

Dual gas banks with synchronized pressure monitoring enable automatic transitions when primary cylinders reach 10% remaining capacity. Facilities using NFPA 99-compliant designs maintain at least 48 hours of reserve supply, with 2023 hospital trials showing 99.4% successful automatic transfers during simulated emergencies. Mechanical safeguards like dual-stage check valves eliminate backflow risks during switchover.

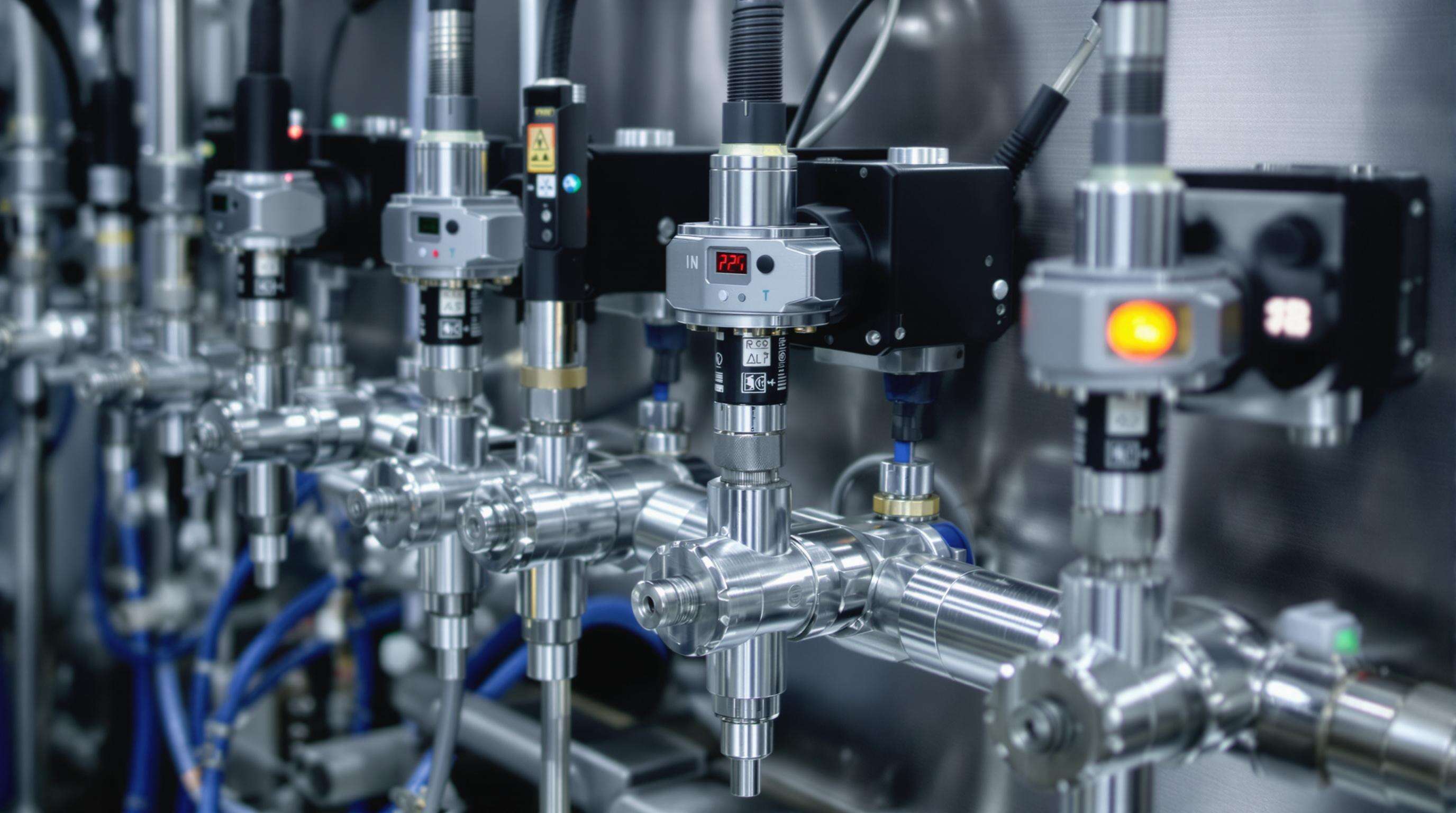

Pressure Sensing and Valve Actuation Mechanisms

Piezoresistive sensors (accuracy ±0.5% FS) track pressures up to 3,000 psi, triggering solenoid valves within 200ms of reaching critical thresholds. A 2024 study of ICU oxygen systems demonstrated that manifolds with predictive pressure analytics reduced false switchovers by 73% compared to basic threshold-based systems.

Case Study: Seamless Oxygen Transition in ICU During Peak Demand

A 500-bed hospital’s manifold executed 14 automatic transitions during a 72-hour COVID-19 surge, maintaining 50–55 psig oxygen pressure despite 212% above-normal demand. Ventilator data showed no clinically significant pressure deviations during changeover events.

Optimizing Switch Timing to Reduce Pressure Fluctuations

Advanced controllers initiate transfers during low-flow periods (<30 L/min for over 45 seconds), resulting in smoother transitions. This strategy reduced pressure spikes by 68% in neonatal ICU installations compared to immediate depletion-response systems.

Trend: Proactive Changeover Using Usage Analytics

Machine learning models now predict cylinder depletion 2–4 hours in advance by analyzing historical usage and real-time bed occupancy. Early adopters report 84% fewer emergency switchovers and 31% longer primary supply durations through predictive reservoir management.

Sensors, Alarms, and Real-Time Monitoring in Medical Gas Manifolds

Real-Time Detection of Supply Anomalies

Today's modern manifolds come equipped with networked sensors that keep track of several key factors. These include pressure levels ranging from 30 to 95 psig, flow rates with about plus or minus 2% accuracy, and gas purity requirements like at least 99.5% oxygen content. The system checks these metrics every half second. According to recent data from the Healthcare Safety Institute in 2023, this kind of continuous monitoring cuts down on serious gas supply problems by nearly four out of five cases compared to what happens with manual inspections alone. When things go outside acceptable ranges according to NFPA 99 standards, alarms kick in right away. For instance, if there's even a small drop of just 0.5 psi in oxygen pressure, both visual warnings and loud sounds will appear simultaneously at nursing stations throughout the facility as well as in maintenance areas so everyone knows something needs attention immediately.

Integration of Pressure, Flow, and Purity Sensors

Three sensor types create redundancy:

Sensor Type	Measurement Range	Response Time	Clinical Impact
Pressure	0–150 psig	<1 second	Prevents ventilator disconnect
Flow	0–100 LPM	2 seconds	Maintains anesthesia delivery
Purity	85–100%	15 seconds	Avoids hypoxic mixtures

Cross-calibrated sensors automatically compensate for temperature variations up to 104°F (40°C), a critical feature in tropical hospitals.

Case Study: Preventing a Hypoxic Event in a Neonatal Unit

During a cylinder switch, the oxygen sensor on the main manifold picked up that the purity had fallen to just 93%, way below the needed 99% for babies. Within eight seconds, the backup nitrous oxide sensors confirmed something was wrong. The system then cut off the faulty line and switched to spare tanks well before hitting the 30 second safety limit. This quick response kept more than 120 newborns from being exposed to potentially dangerous gas levels, which could have serious consequences in such delicate cases.

Multi-Level Alarm Prioritization for Clinical Safety

Medical gas manifolds categorize alerts into three tiers:

• Level 1 (Critical): Immediate gas cutoff + Code Blue activation (e.g., pure CO₂ detected)
• Level 2 (Urgent): Staff pagers + EHR flagging (e.g., pressure drop impacting 3+ ORs)
• Level 3 (Advisory): Maintenance tickets (e.g., filter replacement needed in 72 hrs)

This hierarchy reduces alarm fatigue while maintaining response times under 9 seconds for life-threatening scenarios.

Wireless Sensor Networks in Modern Medical Gas Infrastructure

Wireless mesh networks based on IEEE 802.15.4 standards are being used these days to keep an eye on those hard to reach gas outlets. The specs usually run at 2.4 GHz with speeds around 250 kbps. Looking at what happened recently, there was this study from Johns Hopkins in 2024 that found something pretty interesting. They discovered that putting in wireless sensors instead of traditional wired ones cut down installation expenses by about two thirds. And get this, they still managed to maintain almost perfect data reliability at 99.998%. As for newer things happening in the tech world, we're seeing IoT protocols coming along that allow all sorts of different sensors to work together with hospital building management systems. This integration makes it possible to predict when equipment might need maintenance before problems actually occur.

Key Safety Features: Pressure Relief and Check Valves

Mitigating Risks of Overpressure and Backflow

Most medical gas manifolds come equipped with pressure relief valves and check valves as their main defense against system problems. When gas pressure goes over 150% of what's normal for operation (usually around 50 to 55 psi in standard oxygen systems), these relief valves kick in to release extra gas before pipes might burst. Meanwhile, check valves keep things flowing in one direction only, which stops dangerous mixing between oxygen and nitrous oxide lines. According to a study from 2023 looking at 120 different hospital cases, these two safety features together stop about 9 out of 10 serious gas system issues as long as they're set up correctly. Of course, regular maintenance remains essential since even well-designed systems can fail if not properly maintained over time.

Engineering Safety Mechanisms in Medical Gas Manifolds

Today's systems typically feature spring loaded pressure relief valves that maintain around 2% accuracy, along with corrosion resistant check valves designed to last about 100 thousand operating cycles. Backup sensors keep an eye on where those valves are positioned throughout normal operation, and will sound off when something starts drifting outside acceptable ranges. New safety regulations now mandate two separate relief routes within manifold setups for areas where patient care is at stake. While this redundancy definitely adds another layer to routine maintenance tasks, most facilities report roughly a third more work involved compared to older single path configurations.

Balancing Redundancy and System Complexity

While tertiary redundancy (primary + secondary + emergency valves) improves reliability by 40% according to fluid dynamics models, it introduces 28 additional failure points. Leading hospitals implement predictive maintenance algorithms to offset this tradeoff, reducing valve-related downtime by 73% in a 2024 trial across 18 facilities.

Case Study: Pressure Relief Valve Activation During Oxygen System Failure

A hospital in the Midwest faced serious problems when their main oxygen supply system went down during a bad winter storm. The pressure in the manifold shot up to 82 psi just 11 seconds after the failure. Safety valves let out about 85 percent of the extra gas, and special check valves stopped any dangerous backflow into the maintenance pipes. These safety measures kept oxygen flowing to the ICU until the backup cylinders kicked in. Fortunately, there were no negative effects on patients during this incident.

Regular Testing and Certification of Safety Components

NFPA 99 mandates quarterly pressure relief valve testing using certified calibration equipment. Data from 1,200 inspections shows 12% of medical check valves fail annual seal integrity tests due to particulate contamination, emphasizing the need for HEPA-filtered maintenance environments. Certification requires documented testing at 110% and 150% of working pressure to ensure reliable emergency operation.

Integration with Source Equipment and System Infrastructure

Dependence on Reliable Gas Sources for Manifold Performance

When it comes to medical gas manifolds, most problems actually start before they even reach the manifold itself. According to recent research published in Healthcare Engineering Journal back in 2023, about 95% of all system failures trace back to issues with upstream components. That's why manufacturers need to design these systems with quite a bit of flexibility. The manifolds must handle wildly different pressure ranges coming from various sources. Liquid oxygen tanks typically run between 4 to 10 bar pressure, while those heavy duty cylinder banks can push anywhere from 200 to 300 bar. Despite these dramatic differences in input pressure, the system still needs to deliver a steady, reliable flow to all the end points throughout the facility.

Connecting Bulk Liquid Oxygen and High-Pressure Cylinder Systems

Modern manifolds interface with multiple gas sources through multi-stage pressure regulation:

1. Primary reduction from cylinder pressures to 10–12 bar
2. Secondary adjustment to match pipeline requirements (4–6 bar)
3. Final stabilization at point-of-use (3–4 bar)

This cascade approach prevents phase separation in liquid oxygen feeds while supporting flow rates up to 240 L/min for acute care applications.

Hybrid Gas Supply Systems: Combining Liquid and Cylinder Sources

Leading hospitals deploy hybrid configurations where:

Source Type	Capacity (m³)	Activation Time	Use Case
Bulk Liquid	10,000–20,000	60–90 minutes	Baseline consumption
Cylinder Banks	500–1,000	<10 seconds	Demand surges/failovers

Automated blending valves maintain optimal O₂ concentration (±0.2% tolerance) during source transitions.

On-Site Oxygen Generation and Its Role in Modern Manifolds

Recent deployments integrate pressure swing adsorption (PSA) generators directly into manifold control logic, creating closed-loop systems that reduce cylinder dependency by 40–60%, enable real-time purity adjustments (93±3% O₂), and cut transportation-related CO₂ emissions by 8.2 tons/month in 300-bed facilities.

Ensuring Infrastructure Compatibility: Piping, BIM, and Digital Twins

Seamless operation requires compliance with ISO 7396-1:2024 standards for:

• Copper pipe sizing (15–54 mm diameters)
• Joint welding integrity (X-ray tested)
• BIM (Building Information Modeling) integration for collision detection

Digital twin implementations now prevent 83% of commissioning errors by simulating:

Gas flow dynamics –  Material thermal expansion –  Emergency purge sequences

This systems-level integration reduces clinical gas incidents by 61% compared to conventional installations (Global Hospital Data Consortium 2025 report).

FAQ

What is a medical gas manifold?

A medical gas manifold is a system that distributes medical gases like oxygen across different zones within a healthcare facility, ensuring continuous supply to essential equipment.

Why is a constant gas supply critical in healthcare settings?

Continuous gas supply is vital for the operation of medical equipment such as ventilators and anesthesia devices, preventing interruptions that could compromise patient care.

How does a medical gas manifold manage gas flow?

Medical gas manifolds use precision pressure regulators and automated valve arrays to balance distribution, keeping pressures stable across multiple hospital zones.

What are the common components of a reliable medical gas manifold?

Reliable manifolds often include stainless steel construction, dual pressure sensors, and sealed valve actuators to ensure long-lasting, accurate performance.

What safety features are typically integrated into medical gas manifold systems?

Safety features include pressure relief valves and check valves that mitigate risks like overpressure and backflow, ensuring safe and effective gas delivery.

What are the benefits of digital monitoring systems in medical gas manifolds?

Digital monitoring systems can predict supply needs and usage patterns, reducing emergency cylinder changes and maintaining pressure stability in critical care environments.
