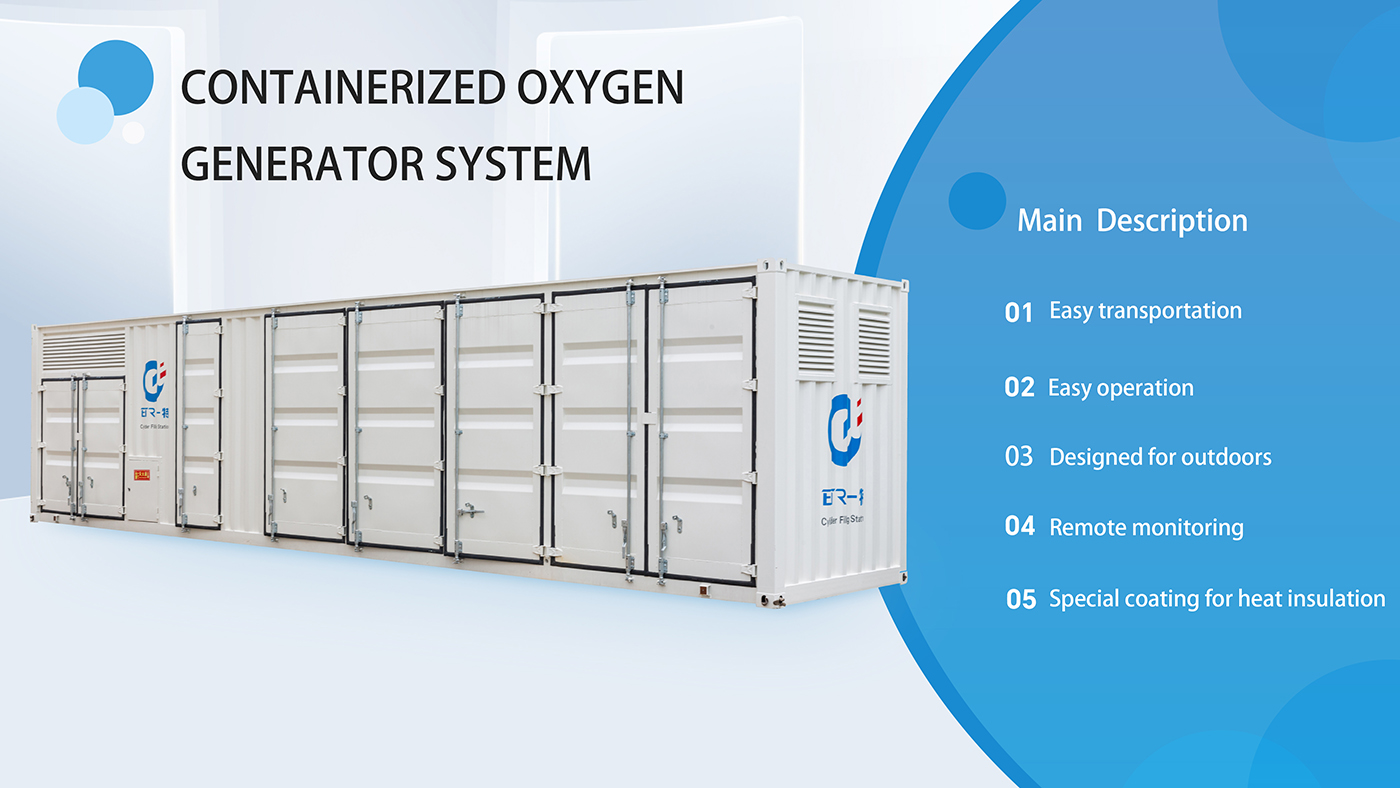

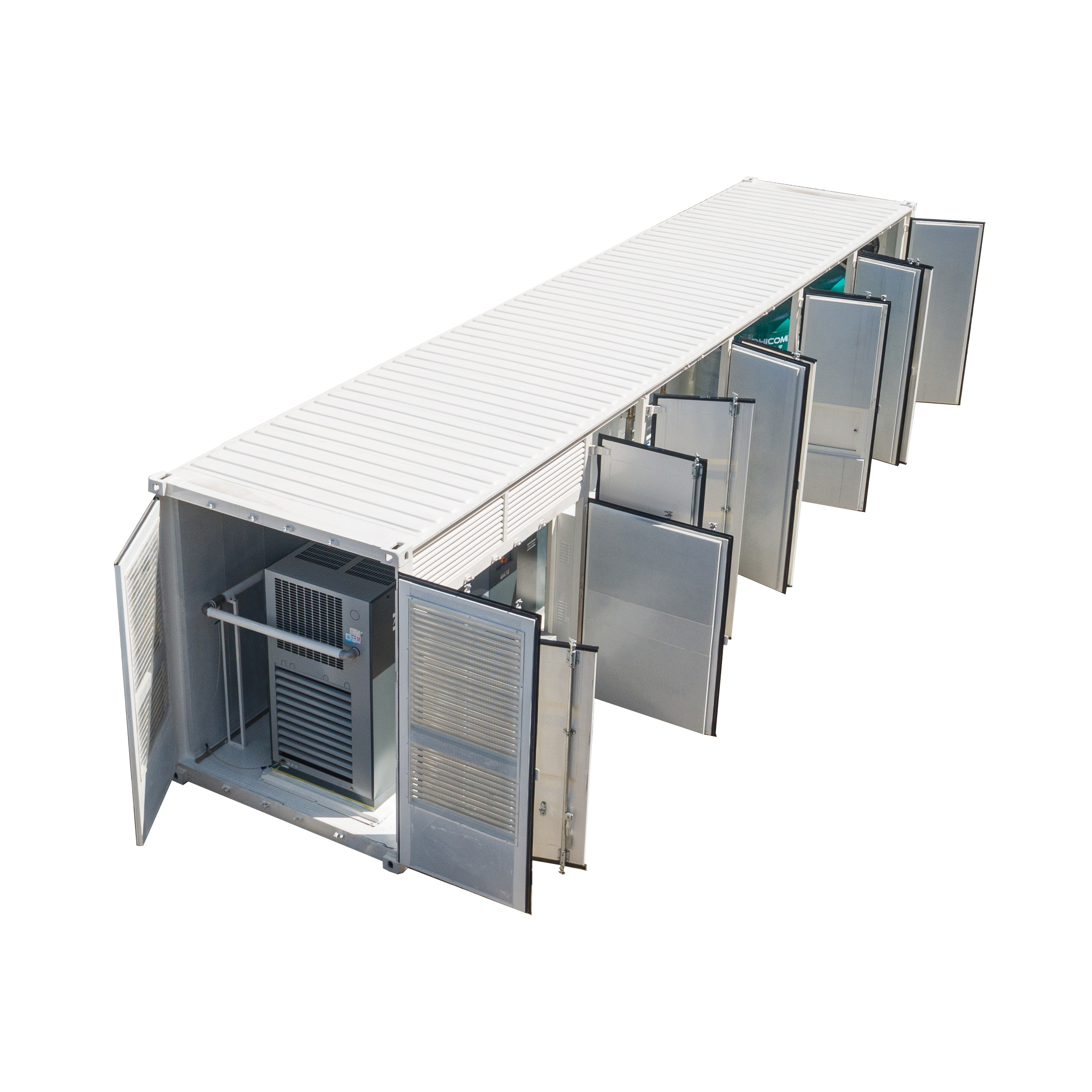

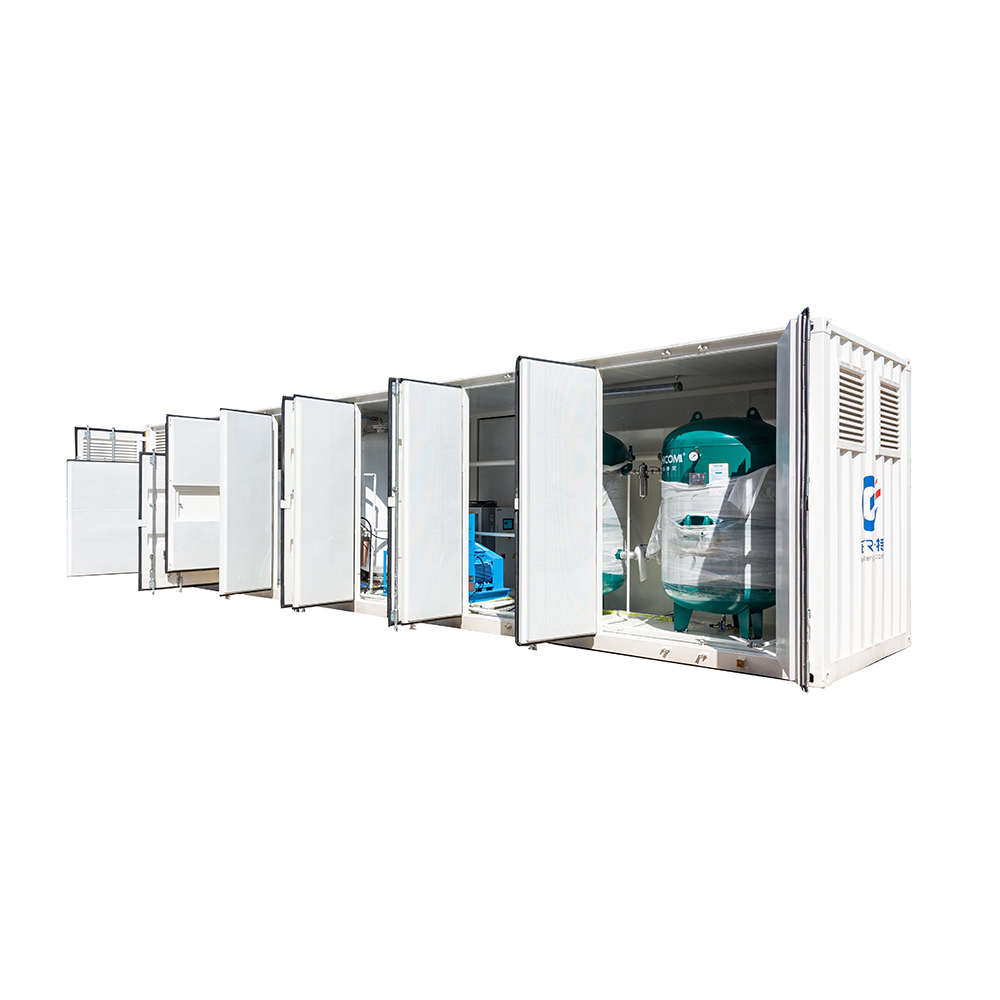

The PSA oxygen generator (with a purity of 93% to 96%) is an oxygen system designed primarily with portable & moving convenience. Oxygen is produced from compressed air using Pressure Swing Adsorption (PSA) technology. The entire compressed air system and oxygen generator system are integrated within a container.
The PSA oxygen generator (with a purity of 93% to 96%) is an oxygen system designed primarily with portable & moving convenience. Oxygen is produced from compressed air using Pressure Swing Adsorption (PSA) technology. The entire compressed air system and oxygen generator system are integrated within a container.
Advantages
1.Oxygen generators are of high-end quality, not cheap.
2.Air compressors and boosters are from top brands, ensuring reliable quality.
3.Oxygen generator system is developed by our own R&D department, making 4.It far more professional than ordinary products on the market.
5.After you receive the oxygen generator, if you need any assistance with machine debugging, we have professional technical personnel to help you.
|
Model |
Oxygen Capacity |
Oxygen Purity |
Filling Pressure |
Filling Capacity |
|
(Nm3/h) |
% |
(Mpa) |
(Cylinders/Day) |
|
|
ETS-B3 |
3 |
93±3% |
15 |
12 |
|
ETS-B5 |
5 |
20 |
||
|
ETS-B10 |
10 |
40 |
||
|
ETS-B15 |
15 |
60 |
||
|
ETS-B20 |
20 |
80 |
||
|
ETS-B30 |
30 |
120 |
||
|
ETS-B40 |
40 |
160 |
||
|
ETS-B50 |
50 |
200 |
||
|
ETS-B60 |
60 |
240 |
||
|
ETS-B80 |
80 |
320 |
||
|
Note:Filling capacity based on 15Mpa pressures &40L cylinder volume &24 operation hours per day. |
||||
