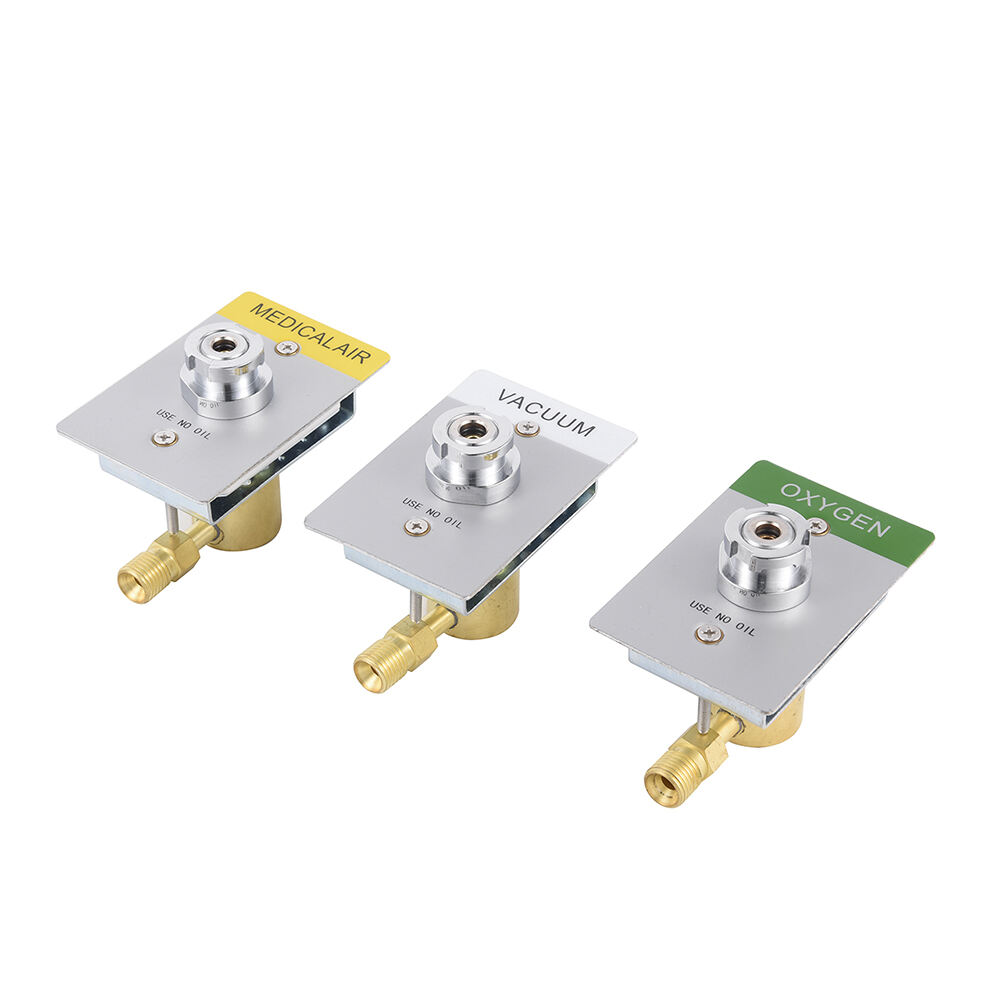

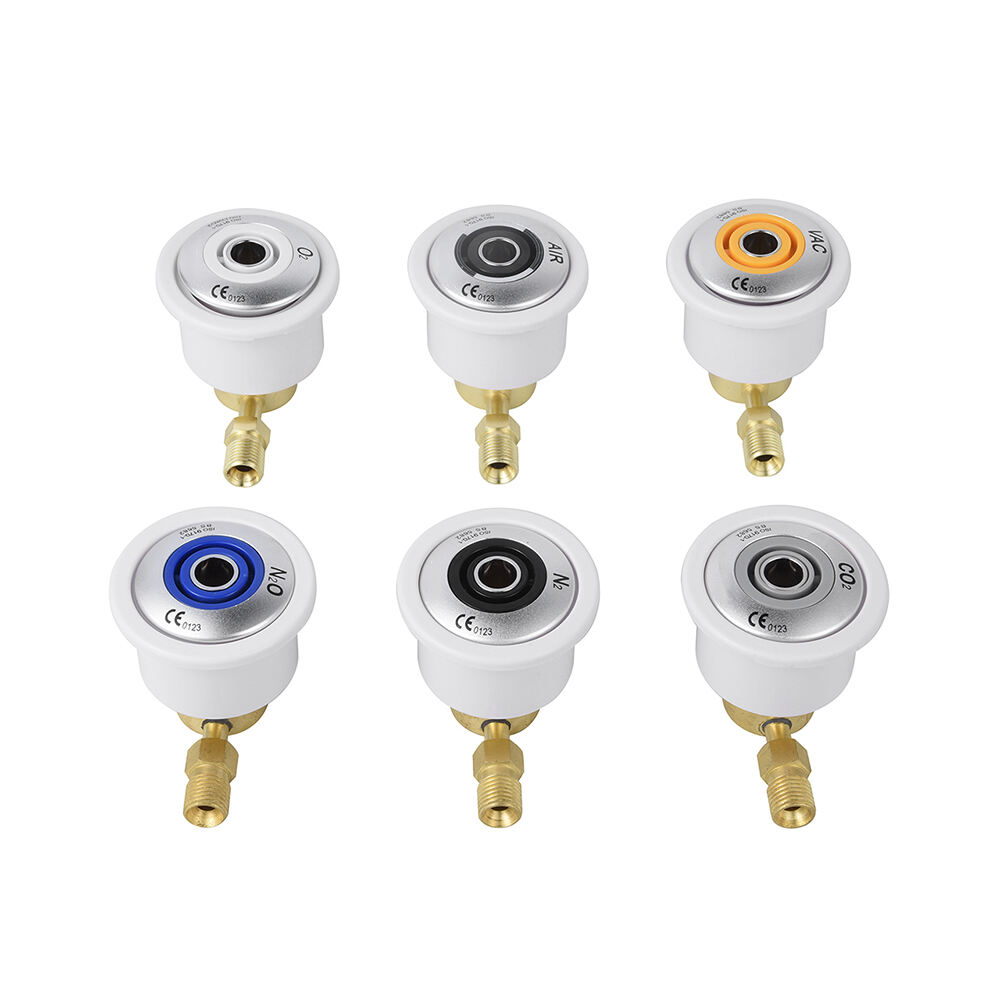

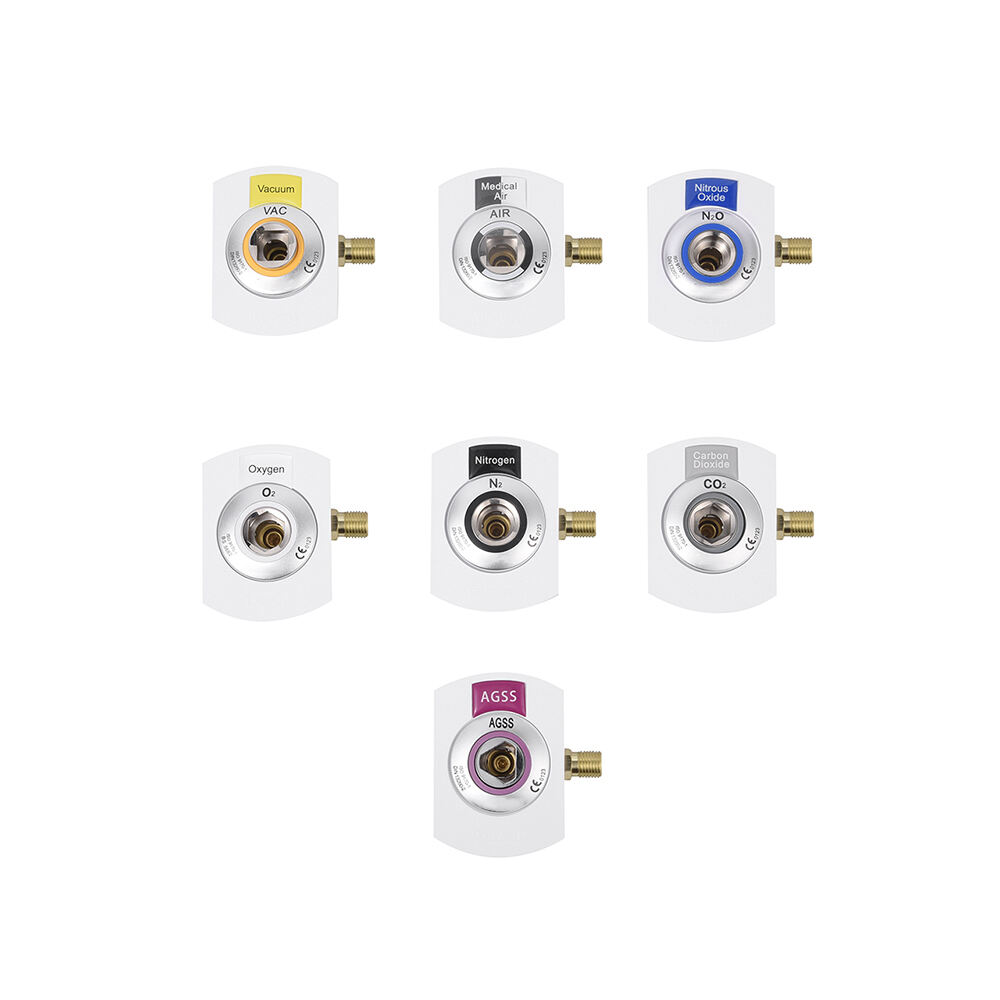

Medical Gas Outlet

Medical gas outlet shall be manufactured by Hunan Etr Medical Co. Ltd. Wall outlet shall be designed for concealed piping installation and available for services indicated.
Medical Gas Outlet shall be CE certified, cleaned for medical gas service. They shall accept only corresponding Japan standard quick connect adapters. Medical gas outlet are designed with an universal rough-in assembly for interchangeability on different quick connects without removing the entire outlet. For terminals providing positive pressure gas, they shall have a primary and a secondary check valve, where the secondary check valve allows for servicing without isolating an entire zone.

Features

• Comply to BS EN ISO9170-1:2008 standard;
• The medical gas terminal design has a common bulk component that can be interchanged into different quick connects without having to remove the entire outlet;
• For terminals that provide positive pressure gas, they must have a primary check valve and a secondary check valve, where the secondary check valve allows maintenance without isolating the entire area;
• You will have a one piece chrome plate to cover the socket with the support box;
• The intake should have a primary check type check valve only;

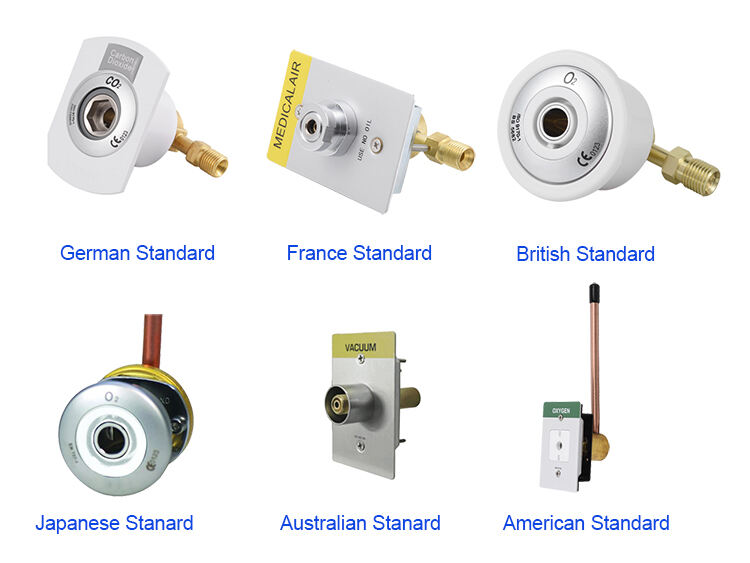

• All medical gas outlets will be of the BS connection type for oxygen.
• The gas outlet will have a maximum working pressure of 100 psig;
• They must be made of copper tube with a 360° swivel connection;
• Including bed head unit mounted, wall mounted and pendant mounted.
