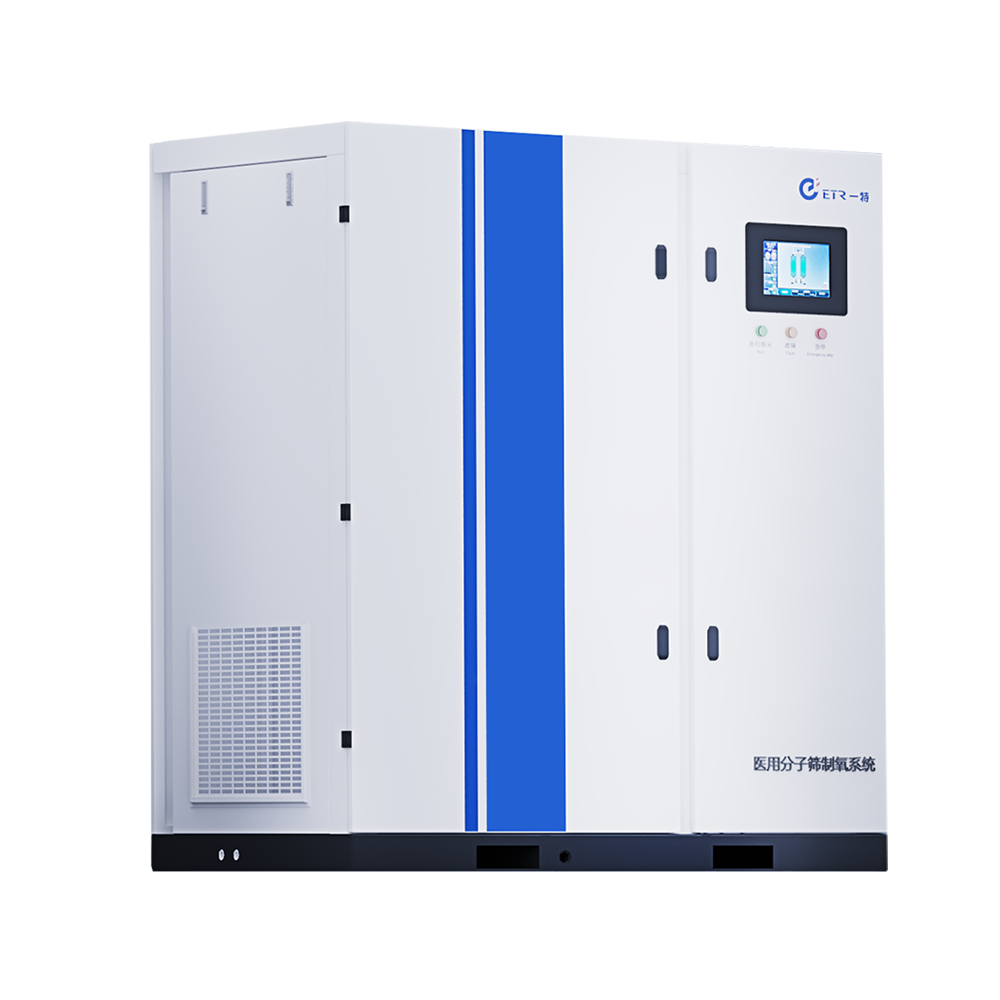

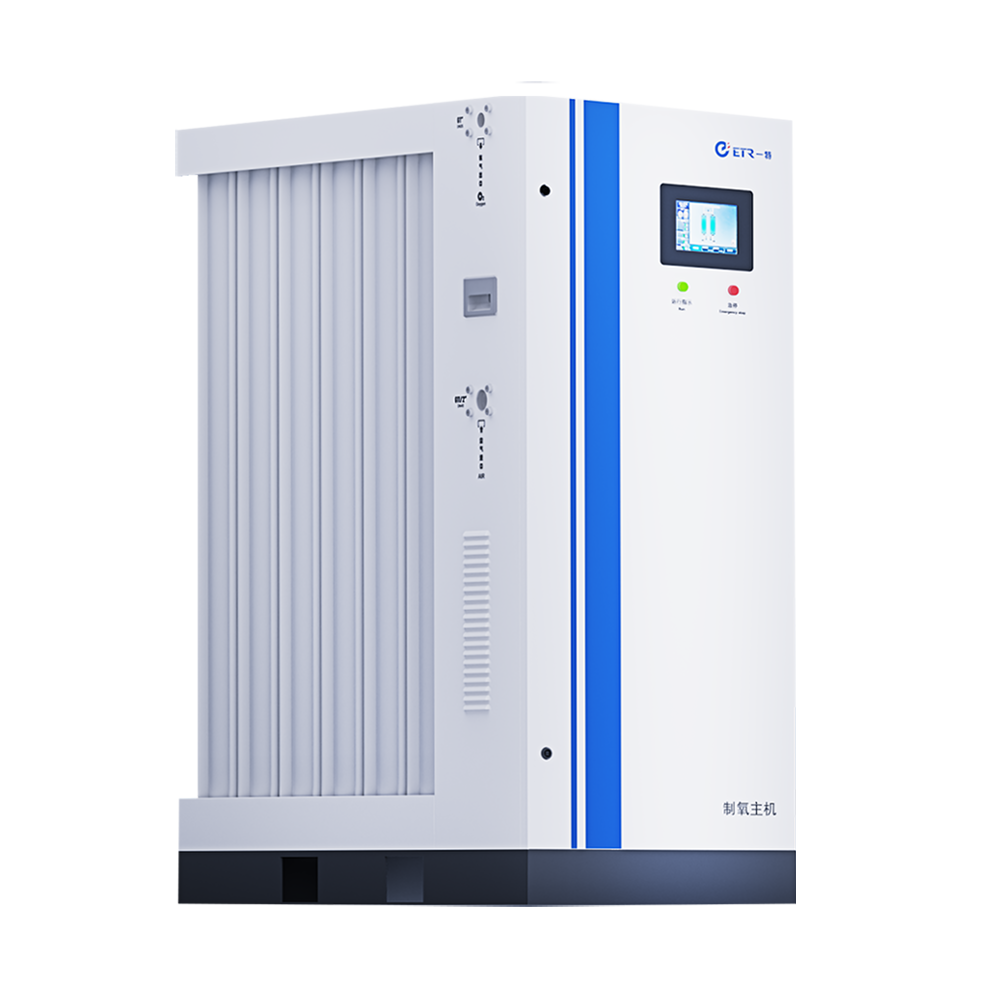

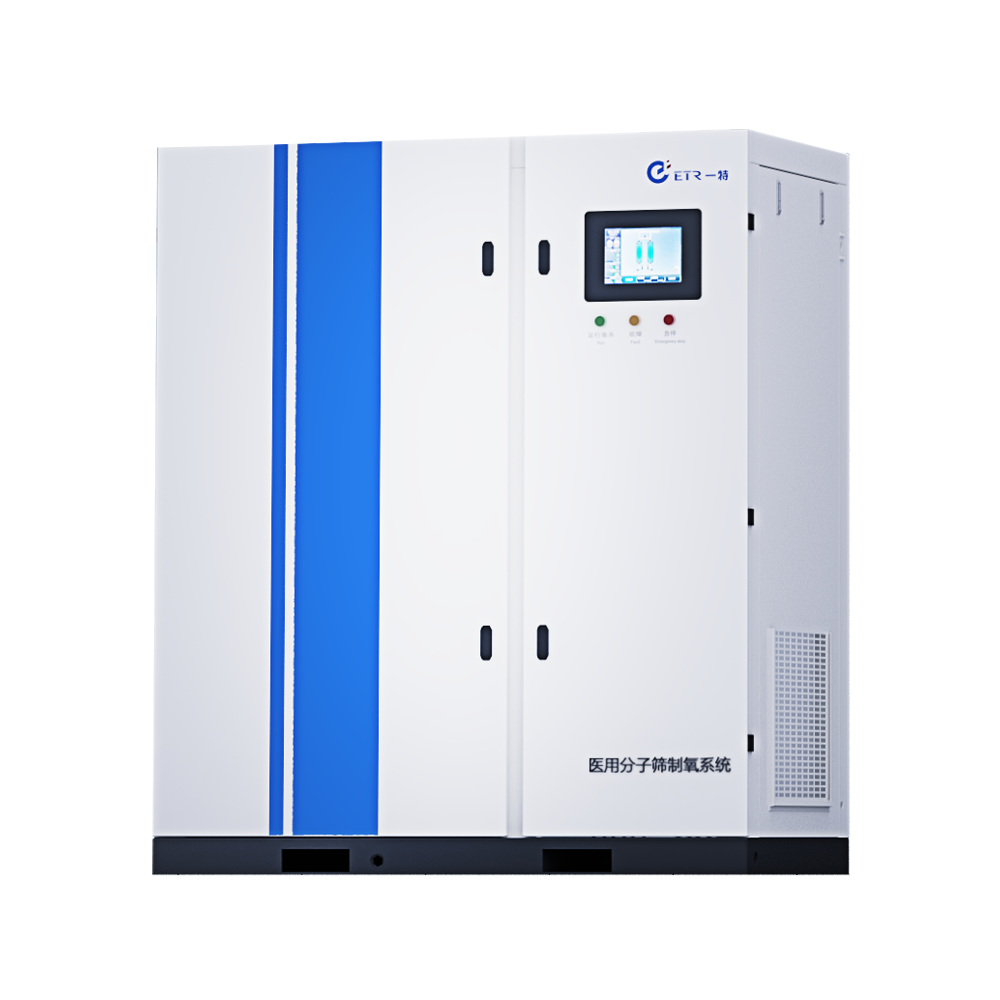

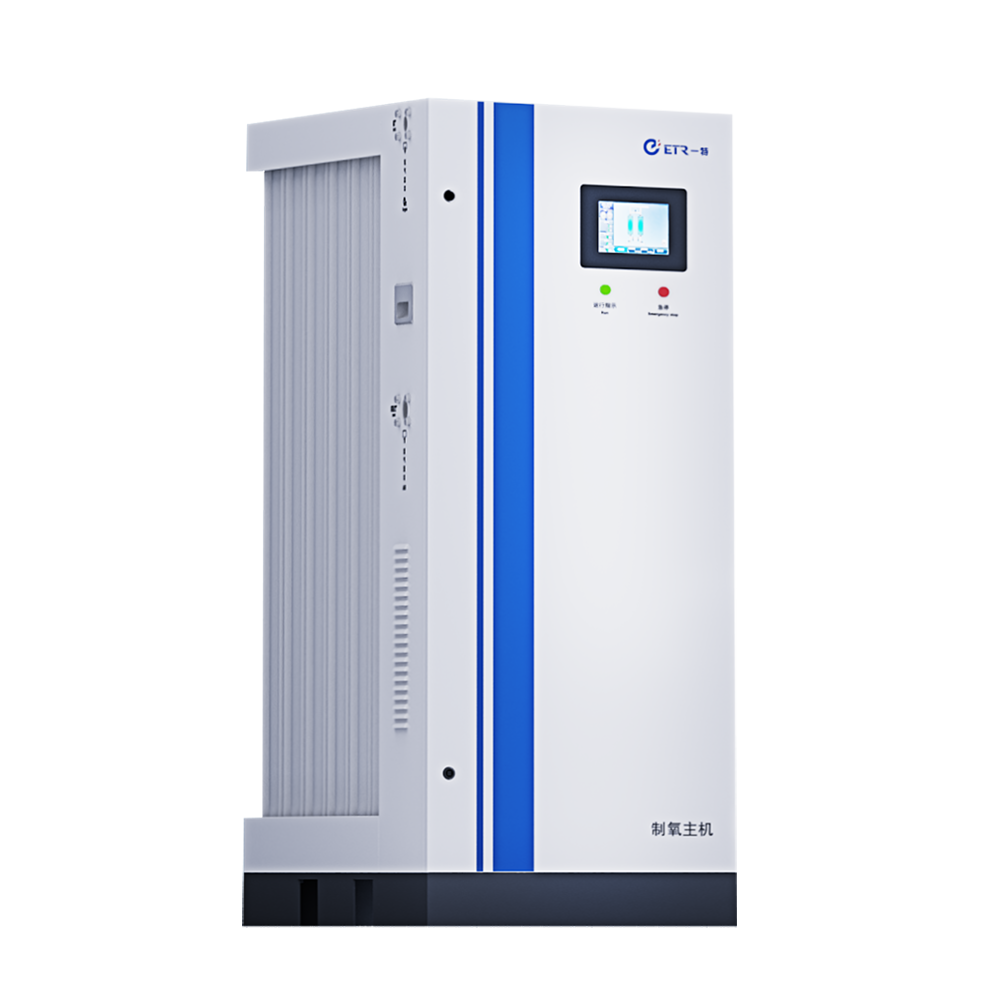

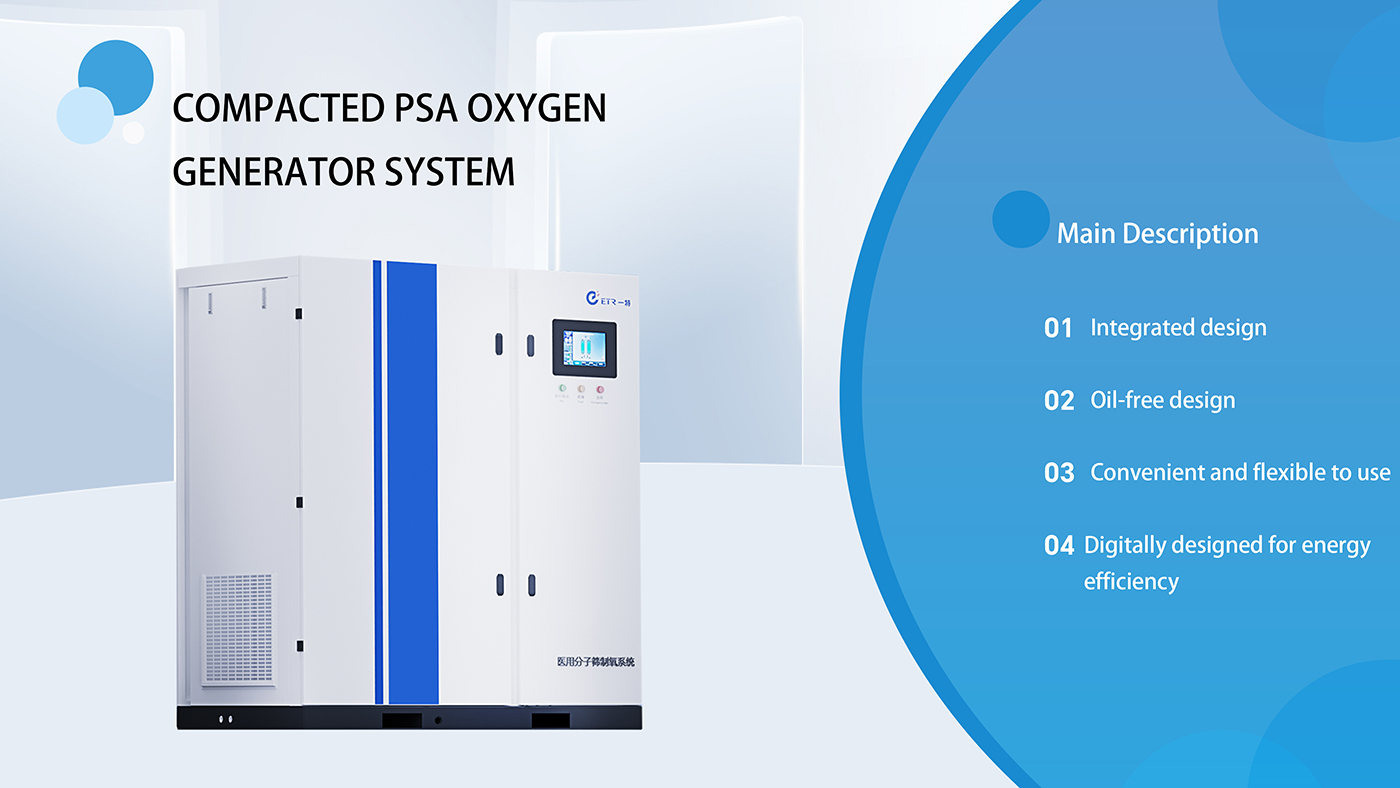

The oil-free integrated oxygen generator is a compact and efficient solution designed for reliable oxygen production. Utilizing advanced molecular sieve technology, it produce 1-5nm3/h oxygen without the need for oil lubrication, ensuring clean and safe operation. the oil-free desigen reduces maintenance requirements and enhances durability. With low energy consumption, quiet operation, this oxygen generator is ideal for small medical facilities and the village clinics, requiring a dependable and portable oxygen supply. Its user-friendly interface and automated controls ensure simple operation, making it a practical and cost-effective choice for on-site oxygen generation.
The oil-free integrated oxygen generator is a compact and efficient solution designed for reliable oxygen production. Utilizing advanced molecular sieve technology, it produce 1-5nm3/h oxygen without the need for oil lubrication, ensuring clean and safe operation. the oil-free desigen reduces maintenance requirements and enhances durability. With low energy consumption, quiet operation, this oxygen generator is ideal for small medical facilities and the village clinics, requiring a dependable and portable oxygen supply. Its user-friendly interface and automated controls ensure simple operation, making it a practical and cost-effective choice for on-site oxygen generation.
|
Model |
Oxygen Production |
Motor Power |
Size (mm) |
Weight (KG) |
Oxygen Purity |
Noise Level (dB(A)) |
Additional Tank |
Machine Room (m2) |
|
ETO-A20 |
1Nm3/h (20LPM) |
2.50 |
1600*750*1300 |
420 |
93%±3% |
60±3 |
300L/0.6Mpa |
10~12 |
|
ETO-A30 |
2Nm3/h (30LPM) |
4.00 |
1600*750*1300 |
480 |
93%±3% |
62±3 |
600L/0.6Mpa |
10~12 |
|
ETO-A50 |
3Nm3/h (50LPM) |
6.00 |
1600*800*1500 |
550 |
93%±3% |
63±3 |
600L/0.6Mpa |
12~15 |
|
ETO-A80 |
5Nm3/h (80LPM) |
10.00 |
1600*800*1920 |
750 |
93%±3% |
65±3 |
800L/0.6Mpa |
12~15 |
|
Power Supply：380V/50Hz/3ph Oxygen Pressure ：0.35-0.45(Mpa) |
||||||||
