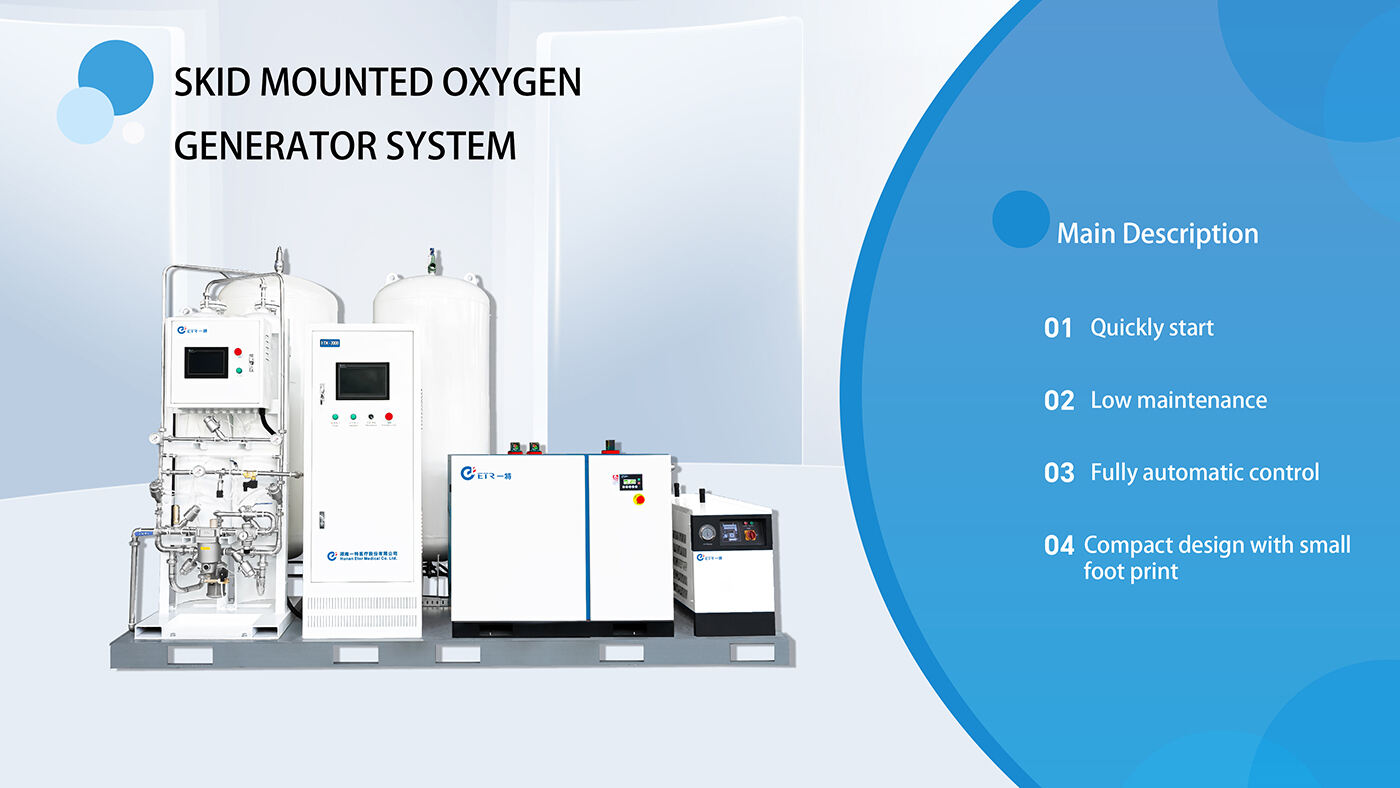

The skid-mounted oxygen generator is an independent oxygen system capable of producing oxygen on-site and filling the oxygen cylinders on site, the skid-mounted oxygen generator is fully automated, compact in design, and easy to operate. It can produce oxygen and and fill the oxygen cylinders according to actual demand. The skid-mounted oxygen generator system is one of the best solutions for hospitals.
The skid-mounted oxygen generator is an independent oxygen system capable of producing oxygen on-site and filling the oxygen cylinders on site, the skid-mounted oxygen generator is fully automated, compact in design, and easy to operate. It can produce oxygen and and fill the oxygen cylinders according to actual demand. The skid-mounted oxygen generator system is one of the best solutions for hospitals.
|
Model |
Oxygen Capacity |
Oxygen Purity |
Filling Pressure |
Filling Capacity |
|
(Nm3/h) |
% |
(Mpa) |
(Cylinders/Day) |
|
|
ETS-B3 |
3 |
93±3% |
15 |
12 |
|
ETS-B5 |
5 |
20 |
||
|
ETS-B10 |
10 |
40 |
||
|
ETS-B15 |
15 |
60 |
||
|
ETS-B20 |
20 |
80 |
||
|
ETS-B30 |
30 |
120 |
||
|
ETS-B40 |
40 |
160 |
||
|
ETS-B50 |
50 |
200 |
||
|
ETS-B60 |
60 |
240 |
||
|
ETS-B80 |
80 |
320 |
||
|
Note:Filling capacity based on 15Mpa pressures &40L cylinder volume &24 operation hours per day. |
||||
